测量皮带速度及旋转设备速度。

　　60200转速监控器是以微处理器为基础的监控器，可与60-22型测速传感器、60-24型测速传感器或其它所有脉冲输入装置配套使用。同时具有单通道或双通道报警输出功能，能被编程用于低速、超速或零速报警?；咕哂?-20mA输出功能。

设备描述

60-22型非接触型转速监测系统

　　60-22非接触型转速监控系统由60－200转速监测器配合60－22型接近传感器使用，以监测运转设备的转速?？筛萦没枰∮玫ネǖ阑蛩ǖ兰嗖馄?。6022型接近传感器配有LED用以指示脉冲输出，便于系统安装及维护，可选用高速传感器(20-5000RPM)或低速传感器(1-60RPM)，所有系统包括20英寸电缆和传感器固定支架。低速系统包括30个孔的目标盘和固定支架。

60-24型轴驱动型型转速监测系统

　　60-24轴驱动型转速监测系统由60－200转速监测器配合60－24型轴驱动型传感器使用，以监测运转设备的转速。该系统可选用单通道或双通道运行监控器，高速传感器(15-2000RPM)或低速传感器(0.25-70RPM)，低速传感器在轴转速非常低的条件下(小于1RPM)也能工作。

徐州拉姆齐  60－200/60-22H-1 转速监测系统

Ramsey Series 60-200 Motion Monitoring Systems offer a choice of versatile and reliable packages for monitoring underspeed, overspeed and zero speed conditions on various machinery and systems by sensing the speed variations of rotating parts

Customers can choose from either mechanically coupled (shaft-driven) or non-contacting proximity type sensors, depending on their particular application requirements and design preferences.  Either type of sensor can then be tied to the Ramsey 60-200 programmable motion monitor.

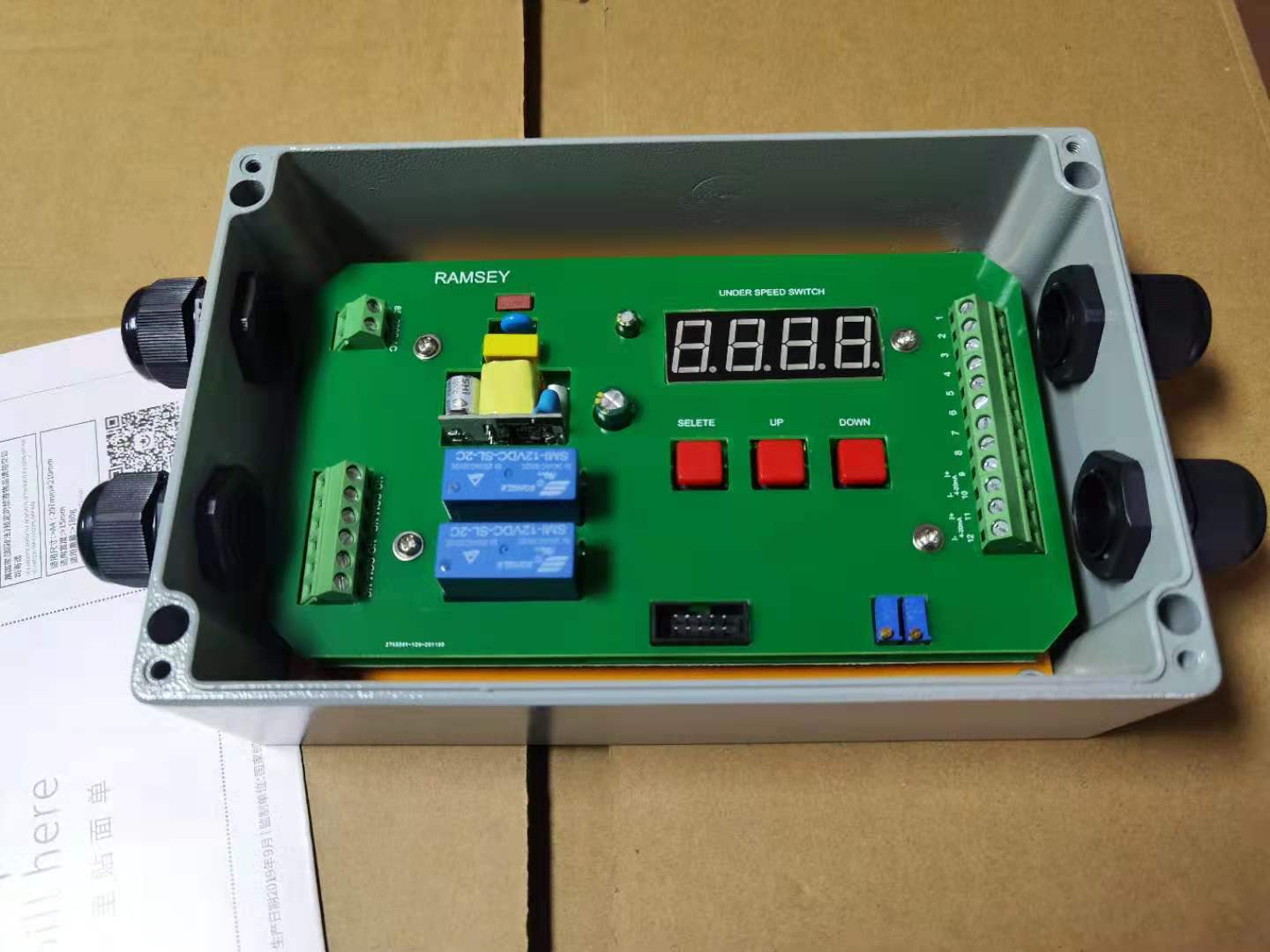

Ramsey Model 60-200 Control

The Ramsey 60-200 Programmable Motion Monitor is a versatile microprocessor-based controller that can be used with any Ramsey sensors, or in some cases, as the control device matched with compatible pulse output sensors from other sources.

Programmable Control Features

Start-Up Delay:  0-99 seconds

Alarm Setpoint(s): 0-160%

Alarm Delay: 0-99 seconds

Restart Mode: Power Up, Remote Relay Input

Begin Start-Up Delay: Power Up, First Pulse

Alarm Reset:  Manual (Latched), Automatic
